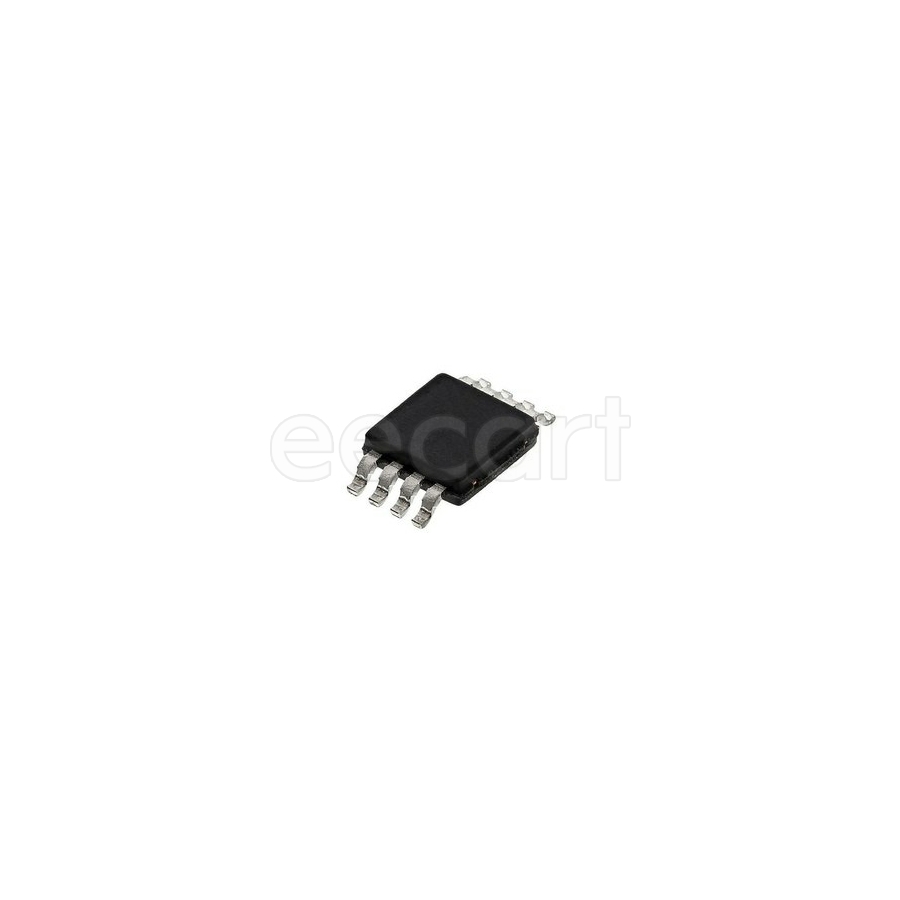

TPS61085DGKT
Manufacturer:
Texas Instruments
Mfr.Part #:
TPS61085DGKT
Datasheet:
Description:
Voltage Regulators - Switching MSOP-8 SMD/SMT Boost Adjustable 18.5 V
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 1.07 mm |
| Thickness | 0.97 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Frequency | 1.2 MHz |
| Min Input Voltage | 2.3 V |
| Output Current | 2 A |
| Output Voltage | 18.5 V |
| Output Type | Adjustable |
| Lifecycle Status | Active |
| Max Supply Voltage | 6 V |
| Min Supply Voltage | 2.3 V |
| Max Output Current | 2 A |
| Quiescent Current | 70 µA |
| Synchronous Rectifier | No |
| Output Configuration | Positive |
| Topology | Boost |
| Switching Frequency | 1.2 MHz |
| Max Input Voltage | 6 V |
| Number of Outputs | 1 |
| Min Output Voltage | 2.8 V |
| Max Output Voltage | 18.5 V |
| RoHS | Compliant |
| Packaging | Reel |
| Function | Step-Up |
Stock: 2165
Distributors
pcbx
pcbxUnit Price$1.42090
Ext.Price$1.42090
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.42090 | $1.42090 |
| 10 | $1.05755 | $10.57550 |
| 25 | $0.96350 | $24.08750 |
| 50 | $0.91212 | $45.60600 |
| 100 | $0.86348 | $86.34800 |
| 300 | $0.81193 | $243.57900 |
| 500 | $0.76345 | $381.72500 |
| 1000 | $0.73866 | $738.66000 |
| 3000 | $0.72267 | $2168.01000 |
| 5000 | $0.70703 | $3535.15000 |
